Logs Monitoring

Starter

Professional

OpenTelemetry

Glouton embeds a log processing mechanism based on OpenTelemetry Collector. This allows defining log receivers based on either files, GRPC or HTTP listeners, process them with operators and filters, and finally export them to the Bleemeo Cloud Platform, from where they can be browsed.

Configuration

Enabling log processing can be done with the following setting:

log.opentelemetry.enable: true

You can now specify additional log files and processing behavior; see the configuration examples below.

Enabling automatic discovery of services and containers logs can be done with:

log.opentelemetry.auto_discovery: true

Once both enabled, logs from containers and discovered services will be gathered and sent to the Bleemeo Cloud Platform.

Note

By default, all discovered logs are processed. To avoid having logs from some containers getting processed, you can leverage the glouton.log_enable label.

Log files

To handle the logs from a file (or a file pattern), you can define receivers in the log.opentelemetry.receivers section of the configuration.

For instance, to gather the logs of an application that writes them in the /var/log/my-app/ folder:

log.opentelemetry.receivers:
  my-app:
    include:
      - '/var/log/my-app/*.log'

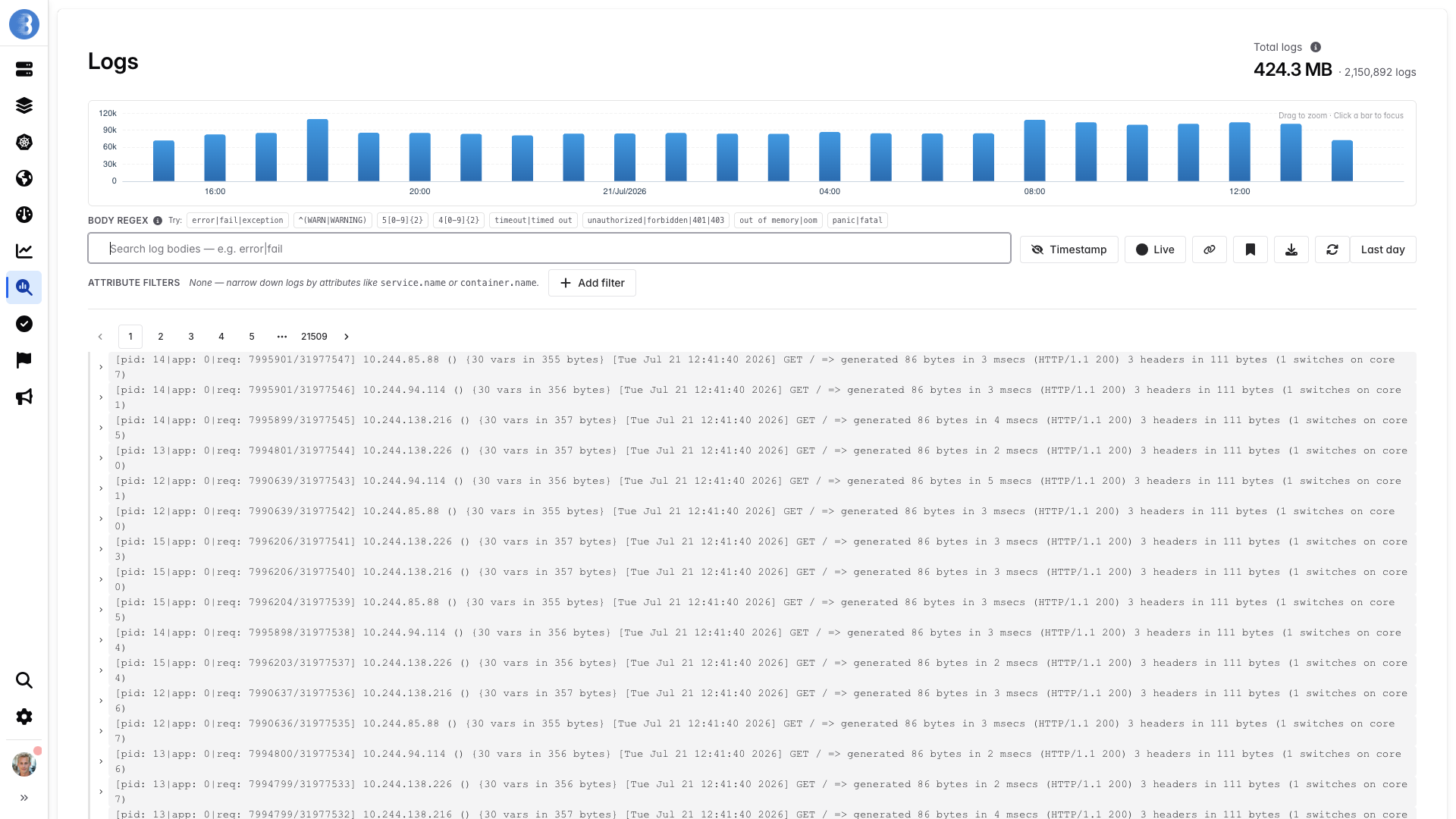

This simple configuration will make the application’s logs appear in the log section of the panel.

Caution

You may need to allow Glouton to read the log file. This can be done with sudo, by adding in /etc/sudoers.d/glouton-local:

glouton     ALL=(ALL) NOPASSWD: /usr/bin/tail --follow=name --bytes=* /var/log/my-app/access.log
glouton     ALL=(ALL) NOPASSWD: /usr/bin/stat --printf=%s /var/log/my-app/access.log

Operators

To enrich/transform the logs, we can add operators that will process each line of log. Our operators are based on Stanza’s operators, so any operator defined in an OpenTelemetry Collector-Contrib configuration can be directly reused here:

log.opentelemetry.receivers:
  my-app:
    include:
      - '/var/log/my-app/access.log'
    operators:
      - type: add
        field: resource['service.name']
        value: 'My app'

Now, all logs handled by this receiver will have the resource attribute service.name set to “My app”. The list of available operator types can be found here.

Additionally, we can use a known log format for the receiver:

log.opentelemetry.receivers:
  web-app:
    include:
      - '/var/log/nginx/access.log'
    log_format: nginx_access # default known log format
  my-app:
    include:
      - '/var/log/my-app/output.log'
    log_format: my_app_parser # custom known log format

We also allow including one or more known log formats within operators, like:

log.opentelemetry.receivers:
  my-app:
    include:
      - '/var/log/my-app/access.log'
    operators:
      - type: add
        field: resource['service.name']
        value: 'My app'
      - include: my_app_parser # <- here
      - type: remove
        field: attributes['some-attr']

In any case, the format must be either one of the defaults we provide or defined like:

log.opentelemetry.known_log_formats:
  my_app_parser:
    - type: json_parser
      timestamp:
        parse_from: attributes.time
        layout: '%Y-%m-%dT%H:%M:%S.%L%z'
        layout_type: strptime
      severity:
        parse_from: attributes.level
        mapping:
          debug: 'DBG'
          info: 'INF'
          warn: 'WRN'
          error: 'ERR'
          fatal: 'FTL'
    - type: remove
      field: attributes['some-attr']

In the above example, the timestamp and severity sections are optional settings of the json_parser operator. Similarly, inside the severity setting, the mapping field is optional.

Log filters

To control which log records should be exported and which ones shouldn’t, filters can be applied with:

log.opentelemetry.receivers:
  my-app:
    include:
      - '/var/log/my-app/access.log'
    filters:
      log_record: # log records matching any item of this list will be dropped
        - 'IsMatch(body, ".*password.*")'

or

log.opentelemetry.receivers:
  my-app:
    include:
      - '/var/log/my-app/access.log'
    filters:
      include:
        match_type: regexp
        resource_attributes:
          - key: 'some-attr'
            value: 'some value'
                                          #####
        record_attributes:                    #
          - key: 'http.response.status_code'  #  This keeps logs that are either:
            value: '5..'                      #  * an HTTP 5xx error
          - key: 'http.request.method'        #  * OR an HTTP POST or PATCH
            value: 'POST|PATCH'               #  * OR a message with severity level equal to information
        severity_texts:                       #
          - 'info'                            #
                                          #####
        severity_number:
          min: 'INFO'
          match_undefined: true
        bodies:
          - 'log with status_code = 5\d\d' # When writing regexps, prefer using single quotes which save us from escaping backslashes
      exclude: # same structure as include

A few notes about filters:

• the rules declared in the log_record list must be written using the OpenTelemetry Transformation Language
• the value of the include.match_type and exclude.match_type fields can be whether strict (exact equality of value) or regexp
• when defining multiple conditions using the include and exclude settings (e.g., both resource_attributes and bodies), a log record matching any of them will be considered as “included” or “excluded”
• same behavior inside the resource_attributes, record_attributes, severity_texts and bodies sections: entries are considered as OR conditions
• if both include and exclude are specified, include filtering occurs first

Filters can also be applied globally with global filters.

Containers

When log processing is enabled, Glouton automatically gathers logs from containers.

Log formats

Specifying a log format for a container can be done using two ways:

1. By using container labels or pod annotations:

   docker run --label glouton.log_format=my_app_parser [...]

   See this section for more information about labels and annotations.

2. If you can’t set container labels or pod annotations, you can use the container_format setting, with the container name:

   log.opentelemetry.container_format:
     my-app-ctr: my_app_parser

Log filters

Known filters can be used the same way, with the label or annotation:

docker run --label glouton.log_filter=my_app_filter [...]

Similarly, a mapping between the container name and the known filter to apply can be defined using the container_filter setting:

log.opentelemetry.container_filter:
  app-01: app-filter

Filters can also be applied globally with global filters.

For example, setting up a filter to only keep logs from a given container can be done with:

log.opentelemetry.global_filters:
  include:
    match_type: strict
    record_attributes:
      - key: 'container.name'
        value: 'app-01'

glouton.log_enable label

Disabling the log processing for a given container or enabling it even when the automatic discovery isn’t active can be done with the following label:

docker run --label glouton.log_enable=false [...]
docker run --label glouton.log_enable=true [...]

Services

Note

When Glouton discovers services, it automatically sets up log processing for them (as for checks and metrics). Learn more about supported services on this page.

Specifying formats and filters to use for a specific service type can be done by referencing a known log format and a known log filter, like:

service:
  - type: 'my-app'
    ...
    log_format: 'my_app_parser'
    log_filter: 'my_app_filter'

Handling specific log files can be done with:

- type: "my-app"
  ...
  log_files:
    - file_path: '/var/log/my-app/access.log'
      log_format: 'my_app_access_parser'
      log_filter: 'my_app_access_filter'
    - file_path: '/var/log/my-app/error.*.log'
      log_format: 'my_app_error_parser'
      log_filter: 'my_app_error_filter'

GRPC / HTTP

Glouton supports receiving logs from both GRPC and HTTP. See the GRPC and HTTP config sections for configuration details.

Filtering can be done by using global filters.

Fluentd

Glouton can read the logs from your applications and generate metrics from the number of lines matching a pattern.

Installation

Glouton uses Fluent Bit to collect the logs on your server.

You can install it as Linux package, a Docker container or a Helm chart on Kubernetes.

Caution

If you installed Glouton as Docker container, you also need to install Fluent Bit with Docker. Installing the Linux package is not supported in this case because Glouton won’t be able to reload Fluent Bit when the configuration changes.

Linux Package

To support logs monitoring, you need to install the package bleemeo-agent-logs. It will install Fluent Bit and configure it to talk with your agent.

On Ubuntu/Debian:

sudo apt-get install bleemeo-agent-logs

On CentOS/Fedora:

sudo yum install bleemeo-agent-logs

Docker

First, you need to create the Fluent Bit configuration.

sudo mkdir -p /etc/glouton
cat << EOF | sudo tee /etc/glouton/fluent-bit.conf
[SERVICE]
    HTTP_Server  On
    HTTP_Listen  0.0.0.0
    HTTP_PORT    2020

@INCLUDE /var/lib/glouton/fluent-bit/config/fluent-bit.conf
EOF

Then you can run the Fluent Bit container.

sudo mkdir -p /var/lib/glouton/fluent-bit/config
sudo touch /var/lib/glouton/fluent-bit/config/fluent-bit.conf
docker run -d --restart=unless-stopped --name bleemeo-agent-logs \
  -v "/etc/glouton/fluent-bit.conf:/fluent-bit/etc/fluent-bit.conf:ro" \
  -v "/:/hostroot:ro" -v "/var/lib/glouton:/var/lib/glouton" \
  -l "prometheus.io/scrape=true" -l "prometheus.io/port=2020" \
  -l "prometheus.io/path=/api/v1/metrics/prometheus" \
  kubesphere/fluent-bit:v2.0.6 --watch-path /var/lib/glouton/fluent-bit/config

Kubernetes

On Kubernetes, Fluent Bit can be installed with the official Helm Chart.

Create the file values.yaml with the following content:

image:
  repository: kubesphere/fluent-bit
  tag: v2.0.6

podAnnotations:
  prometheus.io/scrape: "true"
  prometheus.io/port: "2020"
  prometheus.io/path: "/api/v1/metrics/prometheus"

config:
  service: |
    [SERVICE]
        HTTP_Server  On
        HTTP_Listen  0.0.0.0
        HTTP_PORT    2020

    @INCLUDE /var/lib/glouton/fluent-bit/config/fluent-bit.conf
  inputs: ""
  filters: ""
  outputs: ""

args:
  - --watch-path
  - /var/lib/glouton/fluent-bit/config

daemonSetVolumes:
  - name: hostroot
    hostPath:
      path: /
  - name: varlog
    hostPath:
      path: /var/log
  - name: varlibdockercontainers
    hostPath:
      path: /var/lib/docker/containers
  - name: lib
    hostPath:
      path: /var/lib/glouton/fluent-bit

daemonSetVolumeMounts:
  - name: hostroot
    mountPath: /hostroot
    readOnly: true
  - name: varlog
    mountPath: /var/log
  - name: varlibdockercontainers
    mountPath: /var/lib/docker/containers
    readOnly: true
  - name: lib
    mountPath: /var/lib/glouton/fluent-bit

Then add the Helm repository and install the chart.

# Create the initial empty configuration.
sudo mkdir -p /var/lib/glouton/fluent-bit/config
sudo touch /var/lib/glouton/fluent-bit/config/fluent-bit.conf
# Install the Helm chart.
kubectl create namespace fluent-bit
helm repo add fluent https://fluent.github.io/helm-charts
helm upgrade --install -f values.yaml -n fluent-bit fluent-bit fluent/fluent-bit

Configuration

Glouton can create metrics by applying a regular expression to the log lines. The metrics created correspond to the number of times your regular expression matched a line per second.

The logs can be given by path, by a container name, or by container labels or annotations.

log:
  inputs:
    # Select the logs by path, container name or labels.
    # path:
    # container_name:
    # container_selectors:

    # List of metrics to generate.
    filters:
      # Generated metric name.
      - metric: apache_errors_rate
        # Ruby regular expression to apply on each log line.
        # For testing purposes you can use the following web editor
        # to test your expressions: https://rubular.com/.
        regex: \[error\]

Select Logs by Path

If your application is running directly on the host, you can select the logs directly by path.

log:
  inputs:
    # Apache errors per second.
    - path: /var/log/apache/access.log
      filters:
        - metric: apache_errors_rate
          regex: \[error\]

Select Logs by Container Name

If your application is running in a container with a stable name, you can select its logs by the container name.

log:
  inputs:
    # Redis logs per second by container name.
    - container_name: redis
      filters:
        - metric: redis_logs_rate
          regex: .*

Select Logs by Container Labels

You can select the log of a container by labels or annotations.

log:
  inputs:
    # UWSGI logs count by pod labels.
    - container_selectors:
        component: uwsgi
      filters:
        - metric: uwsgi_logs_rate
          regex: .*
